30.5×30.5mm GEPRC TAKER F745 BT Flight Controller with H60_BLS 60A 4IN1 ESC 5V 1
293.94
Other Buying Option
Ships out quickly from verified sellers!
Sold by Fancy Store
5.0 | 100% Positive
warranty
Secure Payments
Product Overview
Introduction：

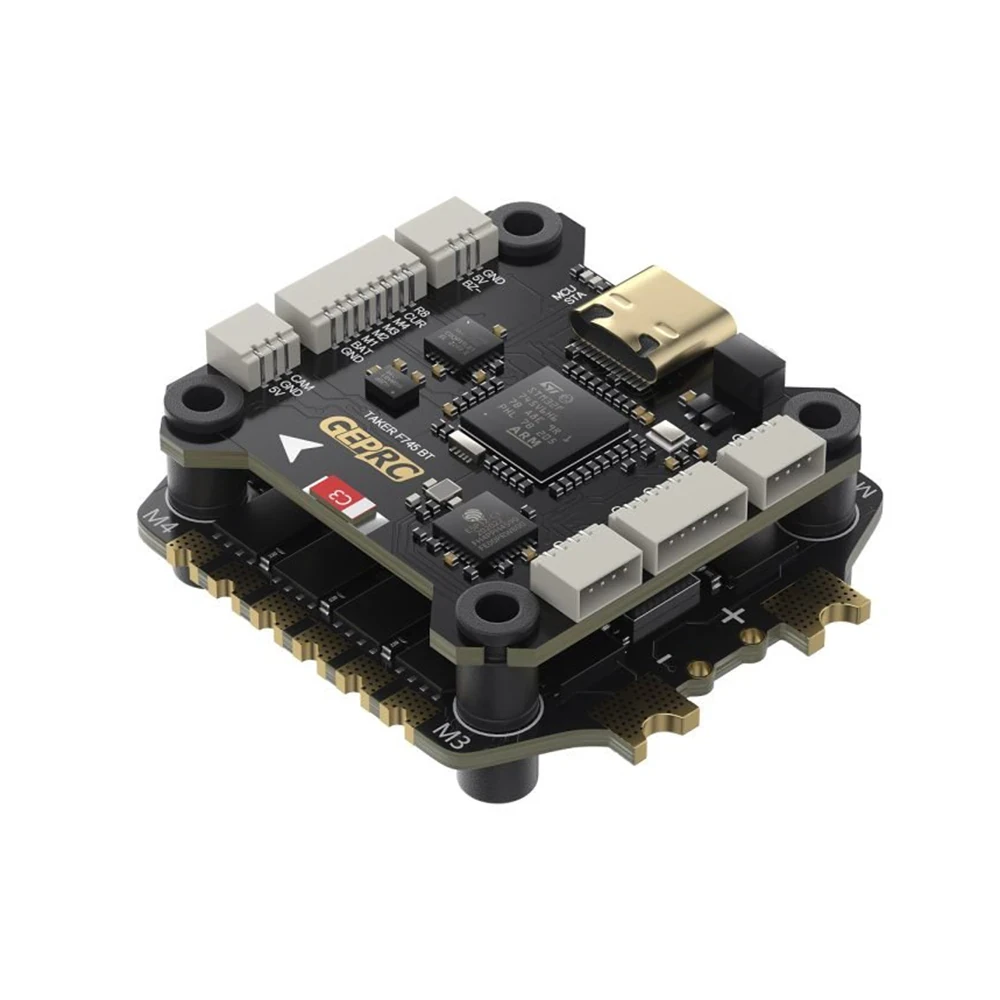

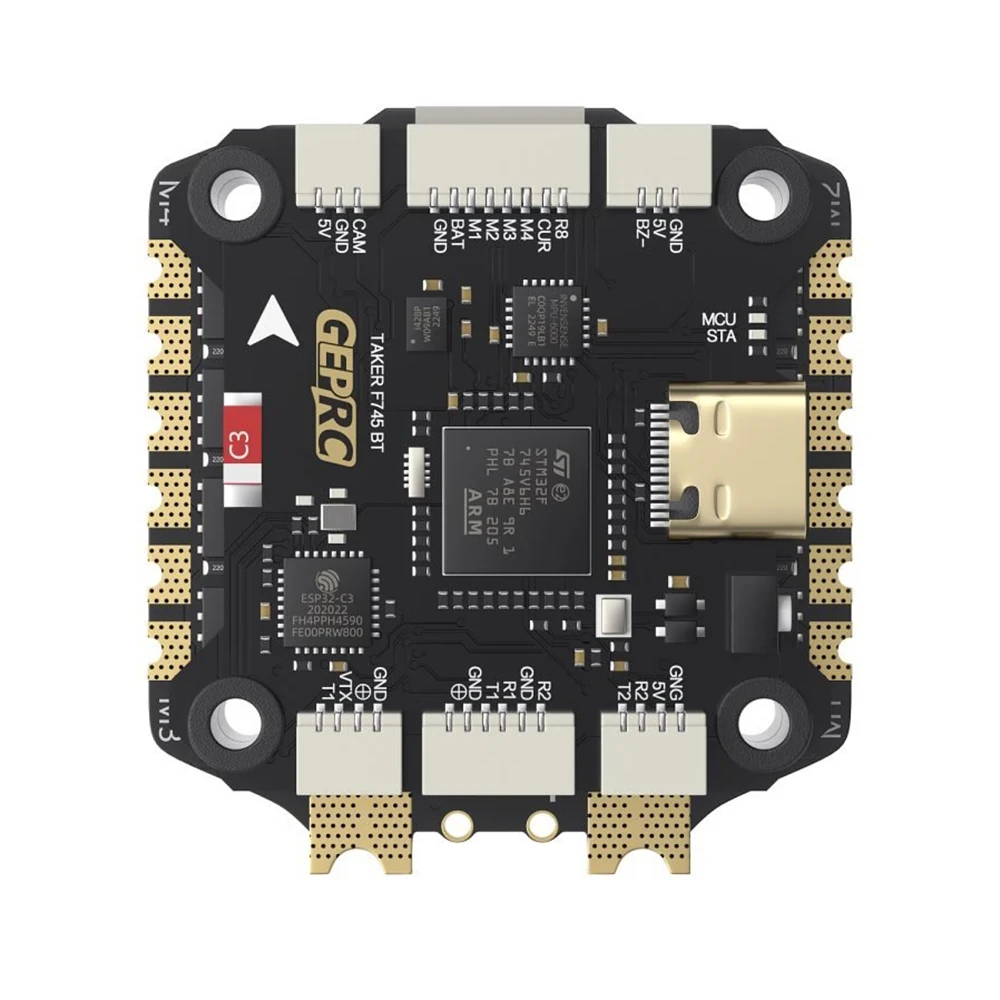

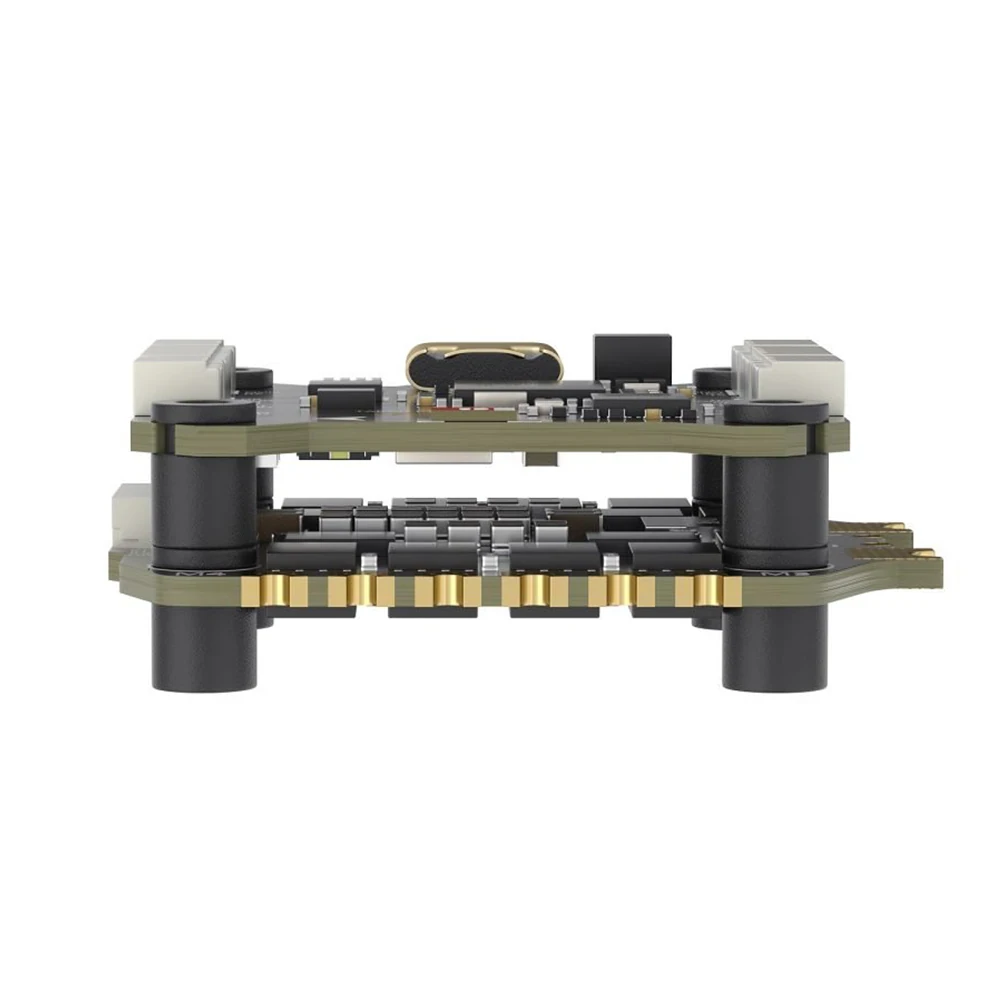

The GEPRC TAKER F745 BT 8Bit 60A stack is the latest stack system developed by the GEPRC team. It features a high-performance STM32F745VGH6 chip with a Cortex-M7 core running at up to 216MHz, handling both racing and freestyle flights with ease. Its dual gyroscope setup, using MPU6000 and ICM42688-P, ensures precise control. With integrated Bluetooth for wireless parameter adjustments and a built-in 512MB black box, it’s well-equipped. It also offers eight motor output ports and is compatible with X8 models.
Compatible with Betaflight, INAV, and Ardupilot, it ensures flexibility. The dual independent 5V@3A + 12V@2.5A BEC ensures stable charging and motor voltage options. Features include seven UART ports, an integrated barometer, and plug-and-play functionality. With the TAKER H60_BLS 4-in-1 ESC, it delivers an exceptionally smooth flight experience.
Features:
- Adopts the high-performance STM32F745 as the main controller
- Equipped with MPU6000 and 42688-P dual gyroscopes
- 512MB high-capacity black box storage
- Bluetooth parameter tuning
- Upgraded Type-C USB interface
- Plug-and-play, no soldering required.
- Integrated barometer
- Features 7 UART ports
- Independent BEC with 12V@2.5A and 5V@3A outputs
- Equipped with the TAKER H60_BLS 60A 4IN1 ESC for a smooth flight experience.
Specifications:
| TAKER F745 BT Flight Controller | FC Model: TAKER F745 BT Flight Controller MCU: STM32F745 IMU: MPU6000 + ICM42688-P(dual gyro) Air Unit Connection: direct plug for DJI Air Unit Black Box：512M onboard Bluetooth: Supported Barometer: Supported USB Interface: Type-C OSD: BetaFlight OSD w/ AT7456E chip BEC Output: 5V@3A,12V@2.5A dual BEC Target: GEPRCF745_BT_HD Dimension: 38.5×38.5mm, mounting hole size 30.5×30.5mm Input Voltage: 3-6S LiPo UART Ports: 7 groups (UART3 fixed for Bluetooth) Power Filtering: Integrated LC filter Weight: 8.4g |
| TAKER H60_BLS 60A 4IN1 ESC | ESC Model: TAKER H60_BLS 60A 4IN1 ESC Input Voltage: 3-6S Lipo Continuous Current: 60A Peak Current: 65A（5 seconds） Supported Protocol: Dshot 150/300/600 Dimension：42×45.7mm, mounting hole size 30.5×30.5mm Weight: 14.9g Target: B_X_30 |
Package Included:
1 x FC board
1 x ESC board
1 x Capacitor
1 × DJI O3 3-in-1 connection cable
1 x FC adapter cable
1 x sh1.0 4pin silicone cable
1 x Camera connection cable
1 x VTX connection cable
1 x Buzzer connection cable
1 × XT60 power cable
4 × M3*30 screws
4 × M3*25 screws
8 x Nylon nuts
12 × Silicone anti-shake pads
| Brand | Generic |
| YPIN | YCGMBZ |
| Condition | New |
| Category | Toys & Games |
| Unit | Pc |
| Available Stock | 35 |
| Shipping Cost | ₫20.00 |
| Refundable | Yes |
| Tax | 2% |
Overall Rating
Based on 4 ratings
How do I review this product?
If you recently purchased this product, go to Orders and click Submit Review.
Where do the reviews come from?
Our reviews are from verified customers who purchased the product and submitted a review.
Reviews
4 reviews, summarised for toys & games
- Several noted that the color is vibrant and true to photos.
- Several repeat buyers say they’d recommend it to others.
- Customers found the materials used in toys & games to be high quality.
- Positive mentions included fast response and helpful service.
The durability is definitely 5 stars for me. And with the Bluetooth betaflight availability along with a 9v for digital. However, I Did have to solder my DJI system in because the plug failed but has not given me a problem after that for months now.
I took a chance on this relatively inexpensive stack with hardly any reviews. It updated firmware and flew fine on my 5”. Had trouble with ESCs then tried the other connection at FC which solved it.
I give it a 3 because it won't let me update to betaflight version 4.4.3 or 4.5.0 and gives me the following error "mixer mode problem detected" but if you leave the default version everything works fine. Esc gone in second flight.
This stack works pretty well and is pretty cheap, haven't had any issues so far and it's pretty easy to conformal coat
